Elliot 10526 CFM Centrifugal Compressors
Other Views - click image for larger view
Elliot 10526 CFM Centrifugal Compressors Elliot 10526 CFM Centrifugal Compressors Elliot 10526 CFM Centrifugal Compressors

elliot 10526 cfm centrifugal compressors

Stock # 4415
Sold
Capacity 10526

Overview

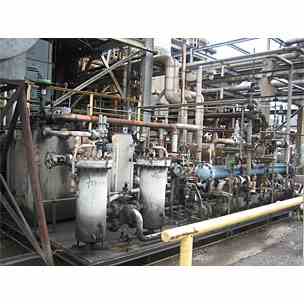

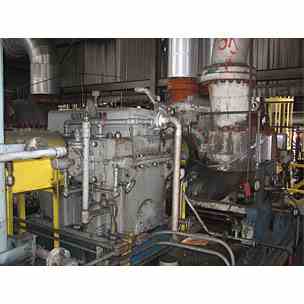

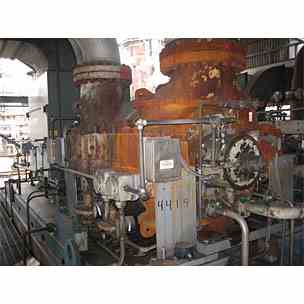

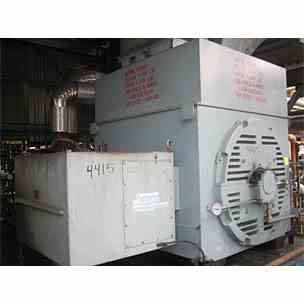

Used 10,526 CFM Elliot Centrifugal Compressor. Serial # A508011. Type 38M6-5, inlet pressure 19 psia @ -10 F, discharge pressure - 240 psi @ 200 F with 5 stages. Motor details: 6000HP GE Motor, 3/60/4600V, 1788 RPM, Amps 652, Serial # DT8424158, Model # 5K861071CI, Frame 8610Z, Type K Continuous motor. Gear Box Details: Philadelphia, service factor 2, serial # 119914, Type 14-HS, 4500 HP, input RPM 1795, output RPM 7586, ratio 1:4.280. Unit is skid mounted, complete with lube oil system that serves both #4415 and #4416, approx. 10'x 20'long. Unit rebuilt 2007.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Elliott
Model
Material
Unknown
Capacity
10526
Category
