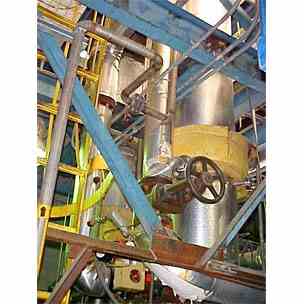

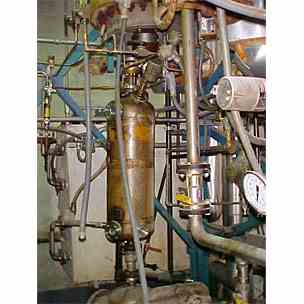

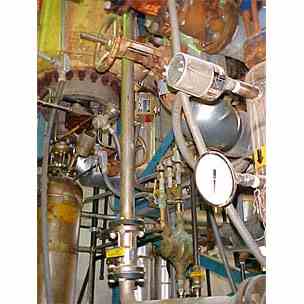

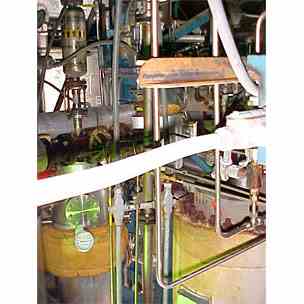

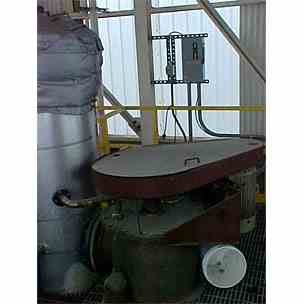

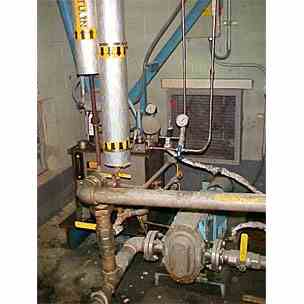

Used 36 sq. ft. 316L stainless steel vertical jacketed Cherry-Burrell thin film evaporator system. 96" x 18" diameter. Shell rated FV @ 650 Deg. F. Jacket rated 100 psi/FV @ 650 Deg. F. Equipped with 20 HP, 1770 RPM motor. Built 1989. Skid mounted structure is 17'3.5" tall x 9' x 8' with the following- Condenser: 134 sq. ft. 316SS shell and tube heat exchanger. Shell rated 150 psi @ 300 Deg. F. Jacket rated 50/FV @ 300 Deg. F. Tanks: (1) 2 gallon 316LSS vertical dished head tank 4" diameter x 14" straight side. Atmospheric @ 650 Deg. F. Used to store evaporate condensate. (1) 15 gallon 316L SS vertical dished head tank. 12" diameter x 32" straight side. Atmospheric @ 650 Deg. F. Used to store evaporate condensate. Evaporator concentrate pump: 9.5 GPM @ 100 psi 316SS. Pressure Filter 316SS, 100 psi. Liquid ring vacuum pump. Evaporator Concentrate Cooler Vent Scrubber: 135 gallon polypropylene vertical vent scrubber. Evaporate Concentrate Static Mixer Previous Use: Solvent Recovery System.
