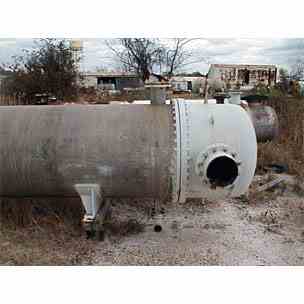

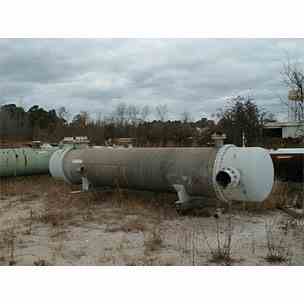

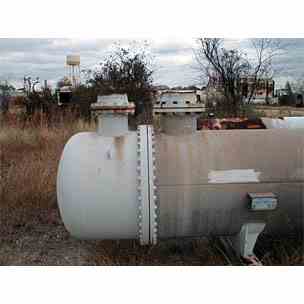

2538 Sq Ft. used SS Heat Exchanger, Shell rated 50 PSIG @ 350 deg F; Tubes rated 75 PSIG @ 300 deg F; 1 / 1 passes; Tubes: (825) 0.75" Dia x 16' long; Horizontal; 316SS - Shell / tubes / Tubesheets; Channels: CS. Size: 40" Dia x 192" OAL; Tema type: BEM; Mfgr. Houston Heat Exchangers - 1984; ASME code built; NB #168; S/N 2034; on (2) saddles; Nozzles: Shellside - (1) 12" 150#, (1) 6" 150#, (1) 3" 150#; Tubeside - (2) 10" 150#; Tube pitch: 15 / 16: square pitch; Est. weight: 12,650 lbs.
