22 Cu Ft Littleford Day  FKM-600-D Plow Mixer
Other Views - click image for larger view
22 Cu Ft Littleford Day  FKM-600-D Plow Mixer 22 Cu Ft Littleford Day  FKM-600-D Plow Mixer 22 Cu Ft Littleford Day  FKM-600-D Plow Mixer 22 Cu Ft Littleford Day  FKM-600-D Plow Mixer 22 Cu Ft Littleford Day  FKM-600-D Plow Mixer 22 Cu Ft Littleford Day  FKM-600-D Plow Mixer 22 Cu Ft Littleford Day  FKM-600-D Plow Mixer 22 Cu Ft Littleford Day  FKM-600-D Plow Mixer

22 cu ft littleford day fkm-600-d plow mixer

Stock # 9593
Sold
Capacity 22 Cu Ft

Overview

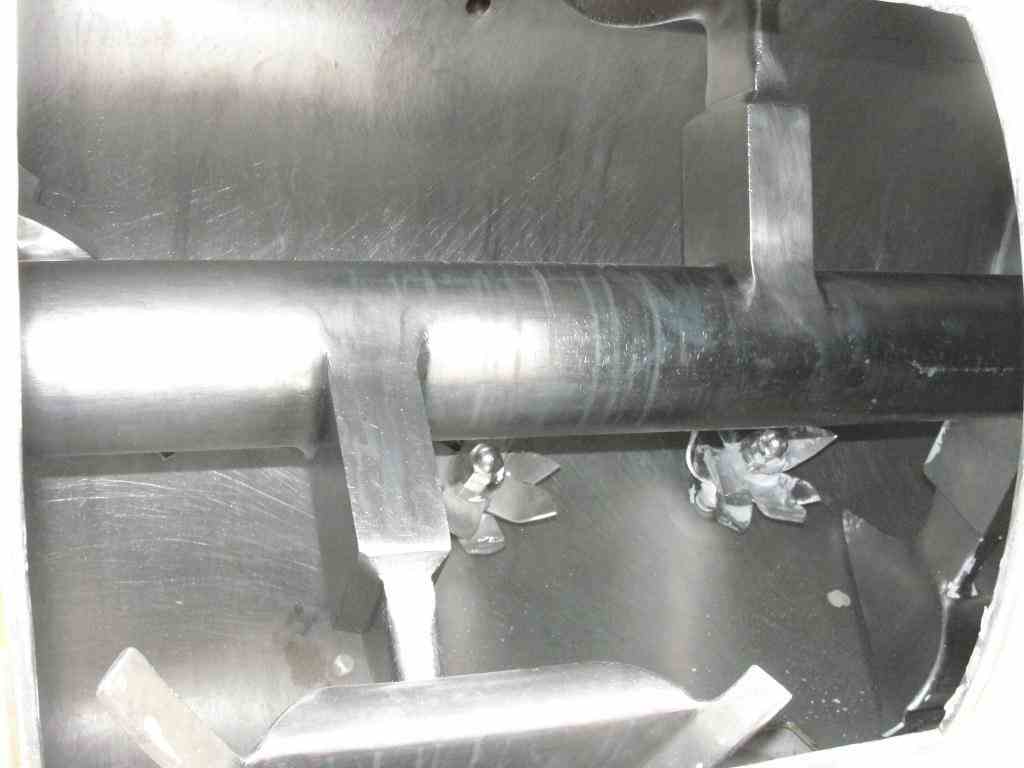

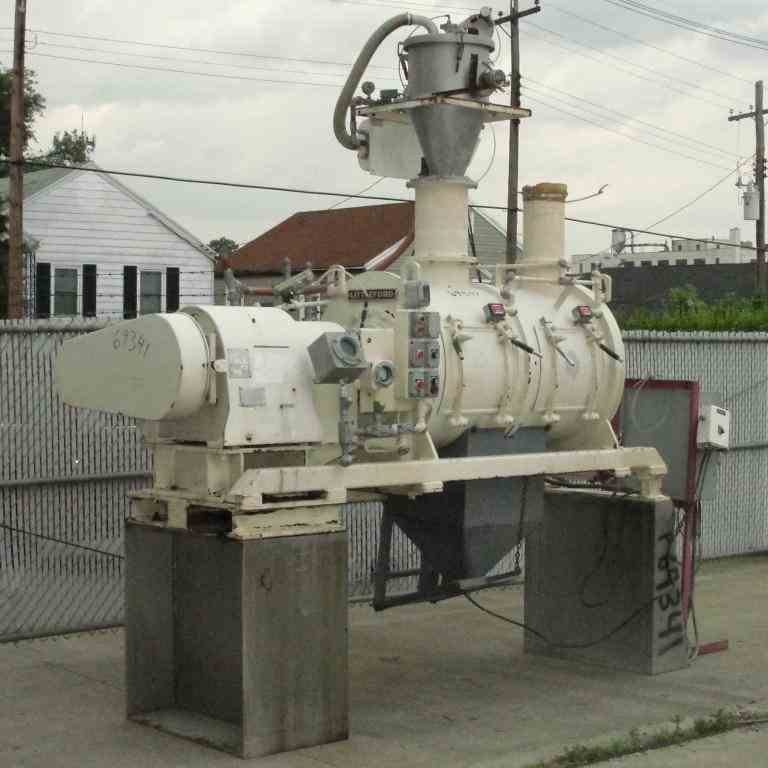

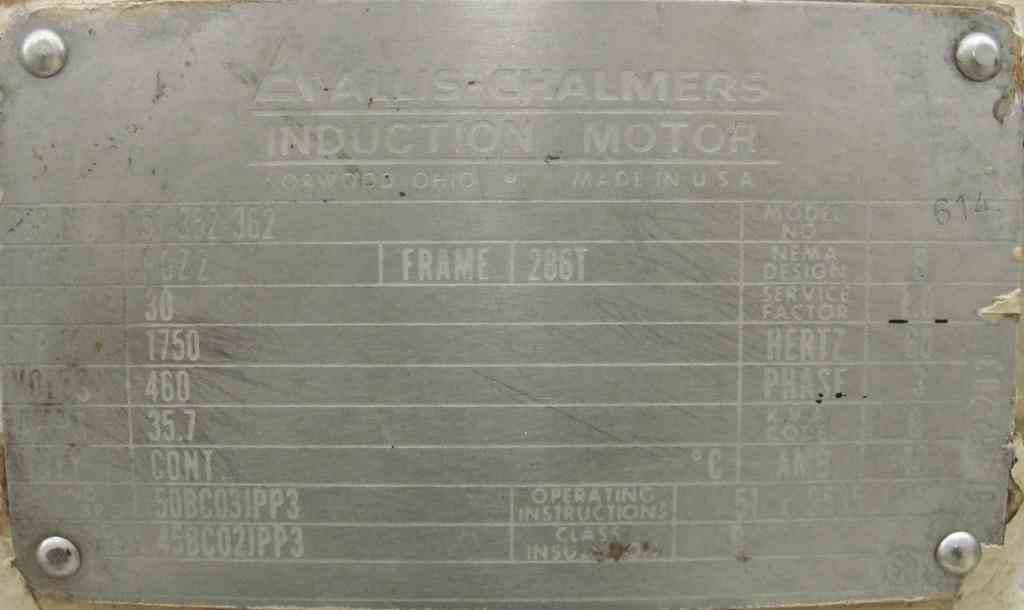

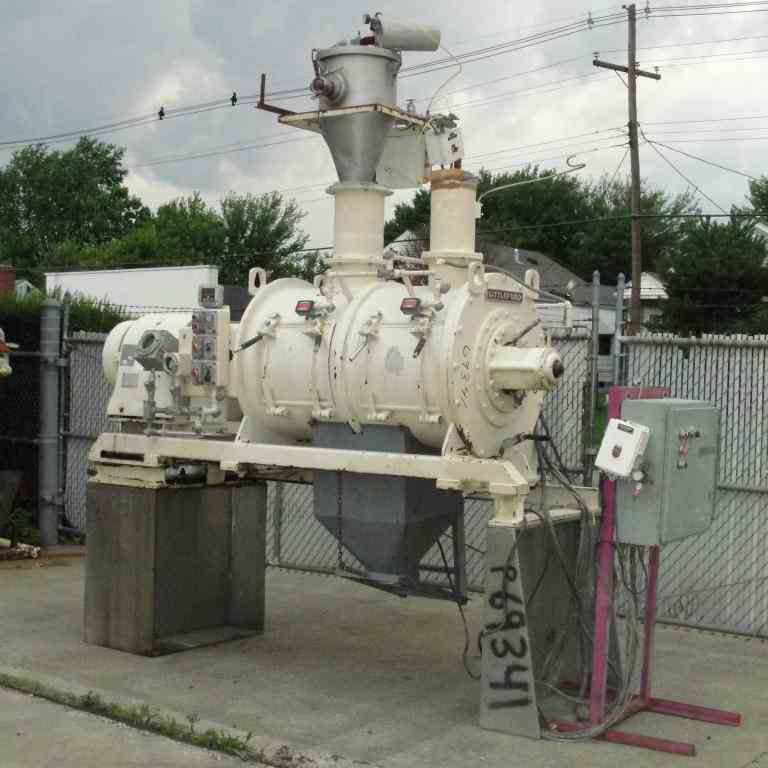

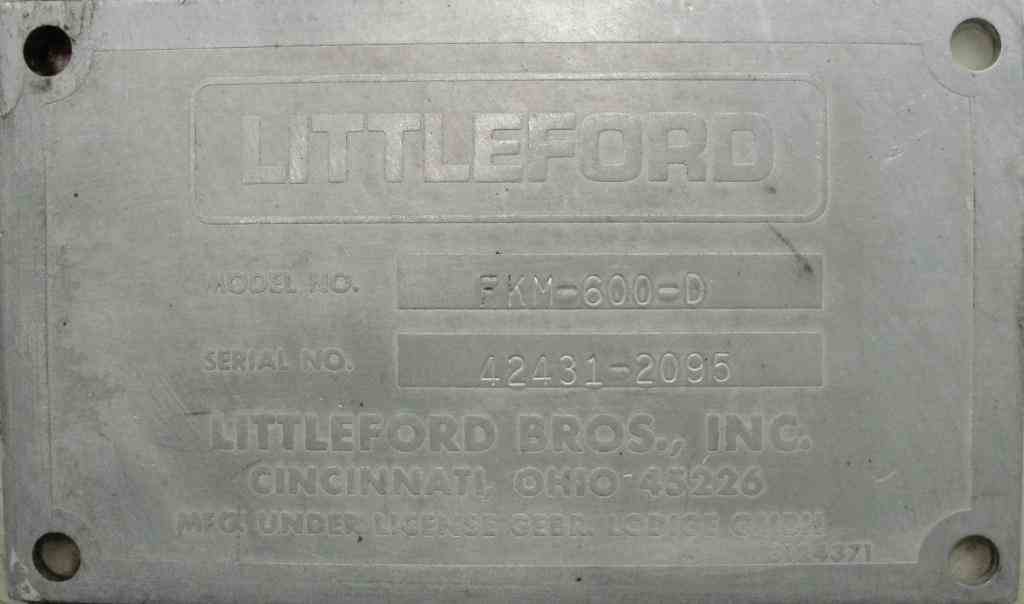

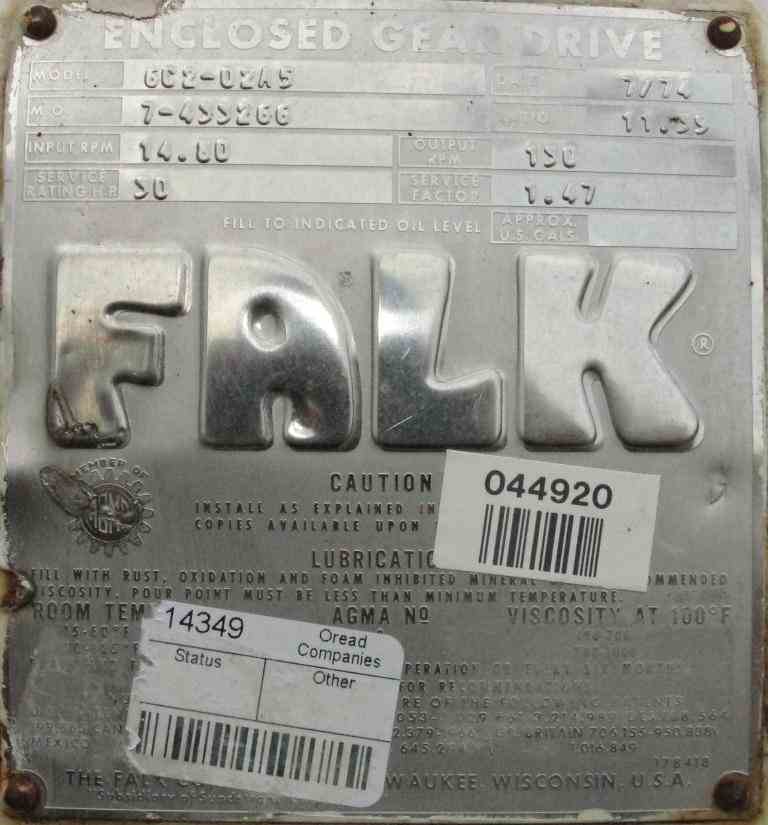

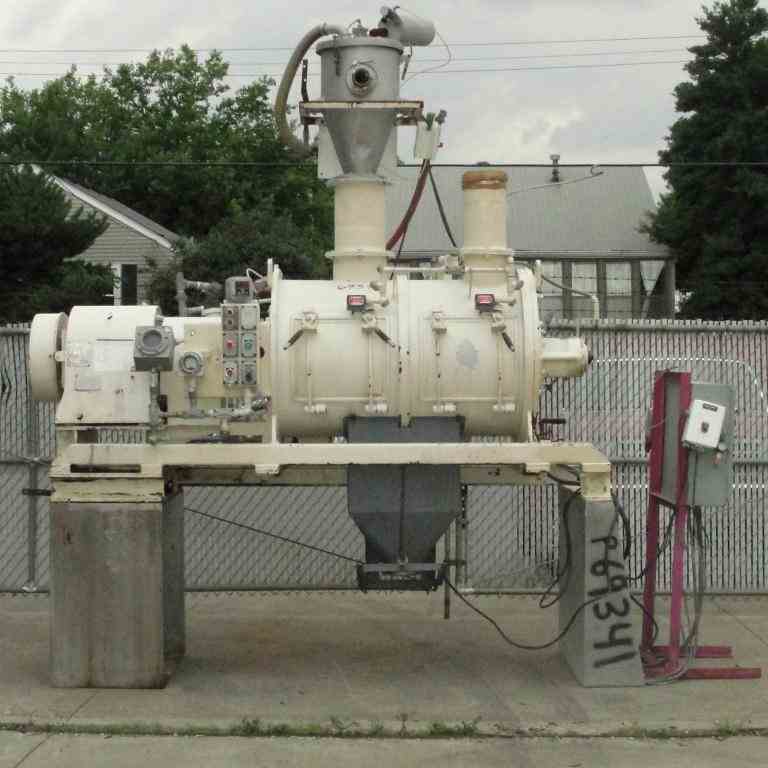

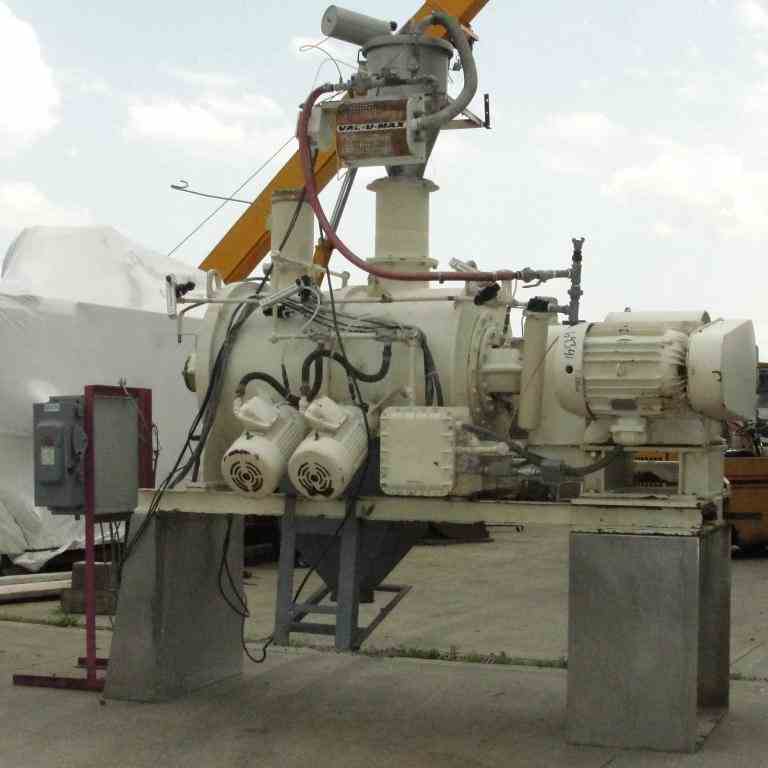

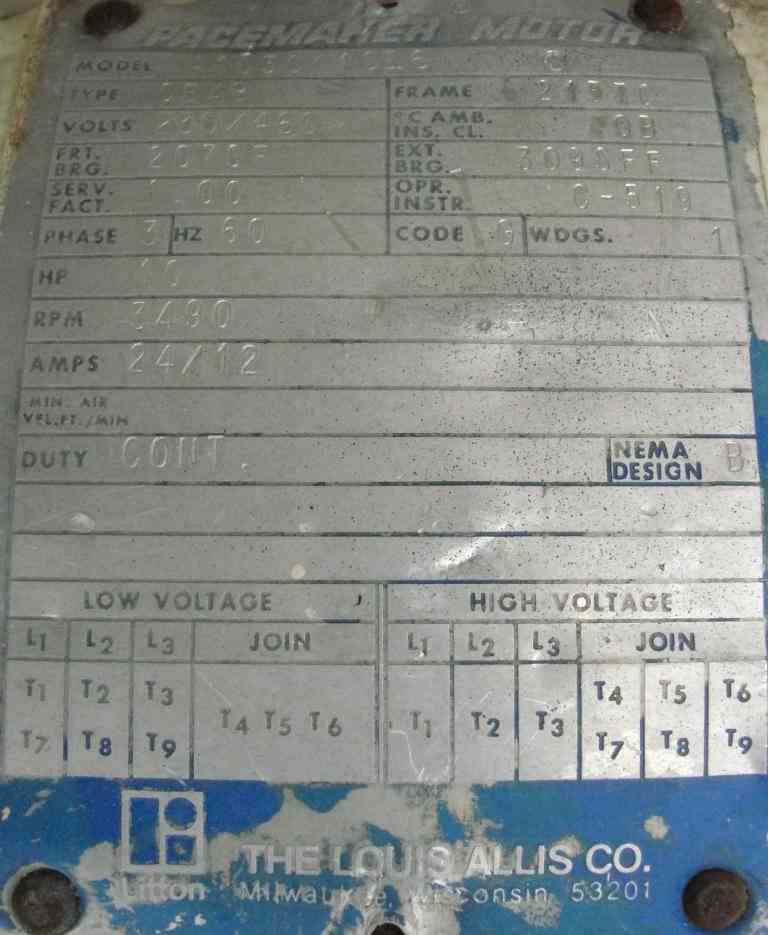

Used Littleford Day 600 liter stainless steel batch plow mixer. Model FKM-600-D. The 3 full and 2 half ploughshare shoves are driven by a 30 hp 1750 rpm motor through an 11.39:1 ratio gear reducer and the (2) high shear choppers are each independently driven by 10 hp 3490 rpm motors. The mixer has (2) 18" x 15" access doors, a 10" diameter infeed with a dust collector and an 8" diameter infeed port on top, and a 7" x 9.5" discharge down to an 8" diameter outlet adapter on bottom. Overall dimensions are 121" long x 55" wide x 140" high. Serial # 42431-2095. Requires 230/460 vac 3 phase electrical supply.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Littleford Day
Model
FKM-600-D
Material
S/S
Capacity
22 Cu Ft
Category
Subcategory
