282 Cu Ft Littleford FKM-8000-D Plow Mixer
Other Views - click image for larger view
282 Cu Ft Littleford FKM-8000-D Plow Mixer 282 Cu Ft Littleford FKM-8000-D Plow Mixer 282 Cu Ft Littleford FKM-8000-D Plow Mixer 282 Cu Ft Littleford FKM-8000-D Plow Mixer 282 Cu Ft Littleford FKM-8000-D Plow Mixer

282 cu ft littleford fkm-8000-d plow mixer

Stock # 9578
Sold
Capacity 282 Cu Ft

Overview

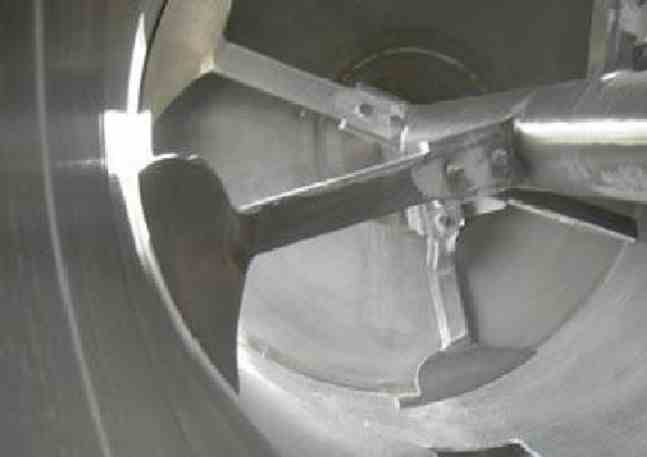

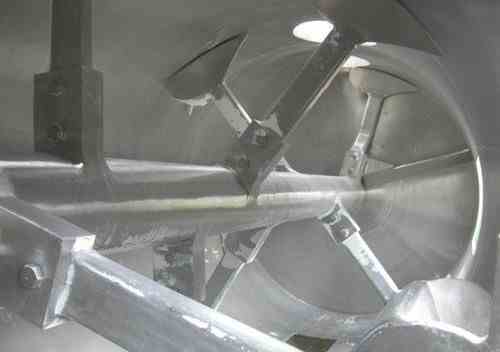

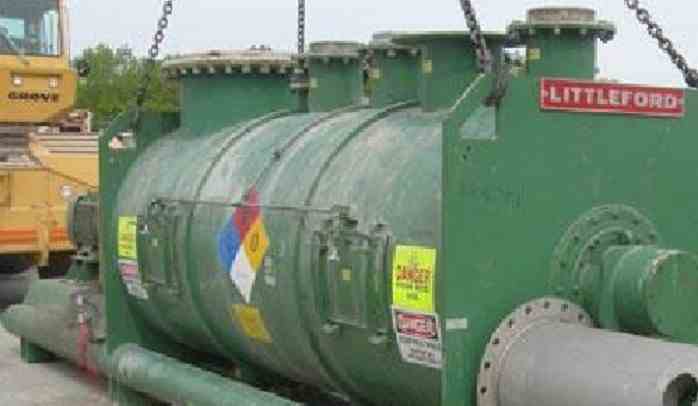

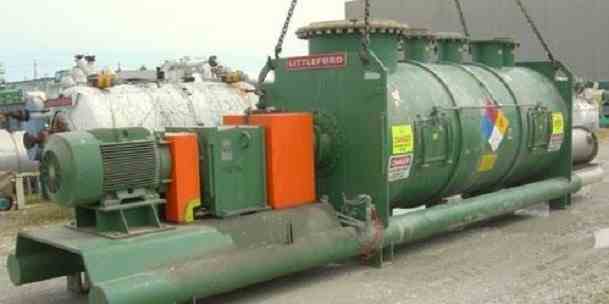

Used Littleford Plow Mixer, Model FKM-8000-D, 304 Stainless Steel. Nominal working capacity 85 to 197 cubic feet, 282 total. Non-jacketed mixing chamber 62" diameter x 158" long. 8" diameter shaft with (8) bolt on plows, (2) end scrapers. Provision for (6) choppers, (3) installed, each driven by a 10 hp, 3/60/230/460 volt, 3530 rpm motor. Air seal glands, (4) top liquid inject nozzles. Openings: top 36", 2", (3) 12", 16"; (2) side access doors; (2) 10" x 12" bottom outlets. Mixer driven by a 200 hp, 3/60/460 volt, 1785 rpm motor thru a Falk reducer, ratio 16.96 to 1. Mounted on a carbon steel base. Built 1984.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Littleford
Model
FKM-8000-D
Material
Stainless Steel
Capacity
282 Cu Ft
Category
