SS Liquid Classifier. Dual rotor breaker
Other Views - click image for larger view
SS Liquid Classifier. Dual rotor breaker SS Liquid Classifier. Dual rotor breaker SS Liquid Classifier. Dual rotor breaker SS Liquid Classifier. Dual rotor breaker

ss liquid classifier. dual rotor breaker

Stock # 9394
Sold
Capacity Unknown

Overview

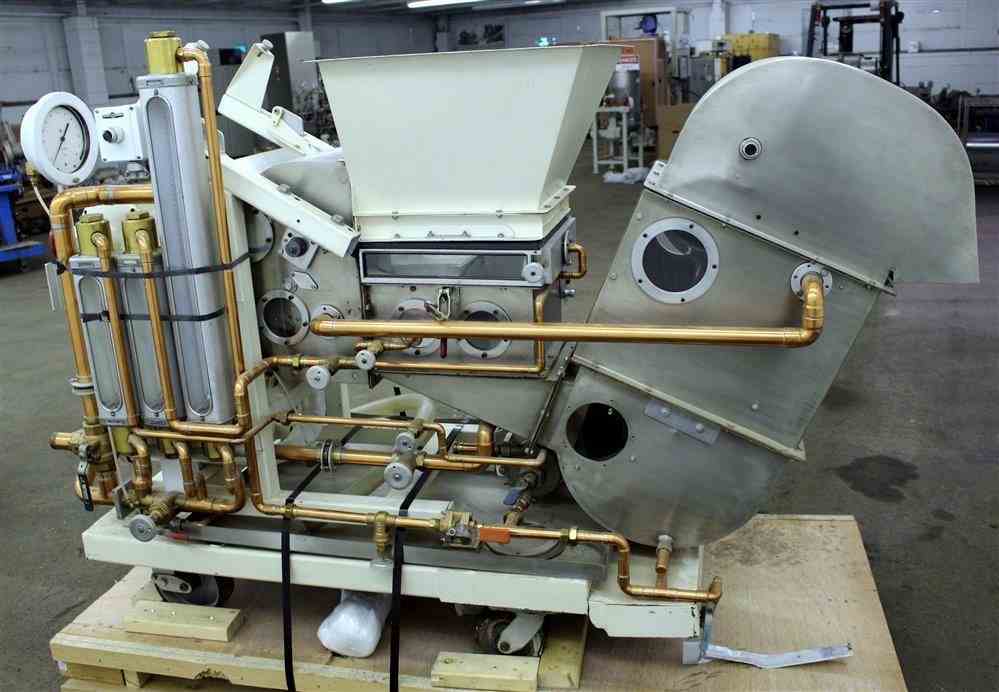

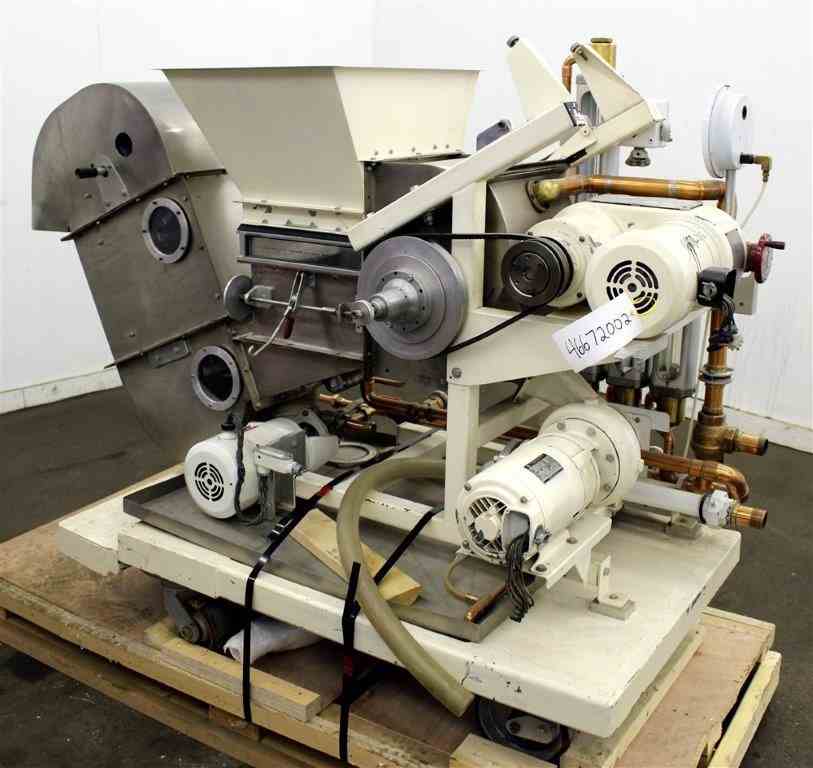

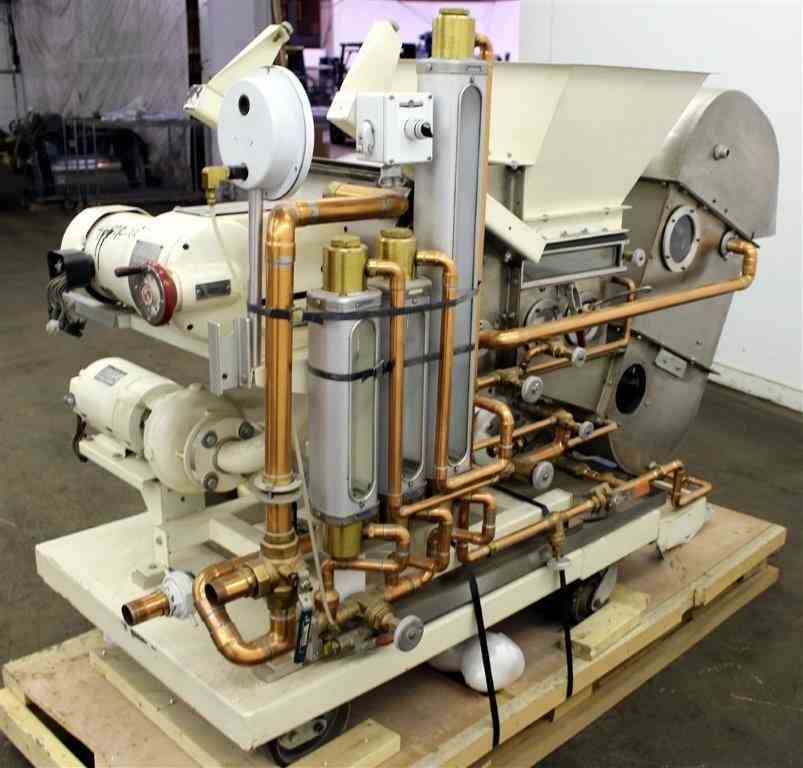

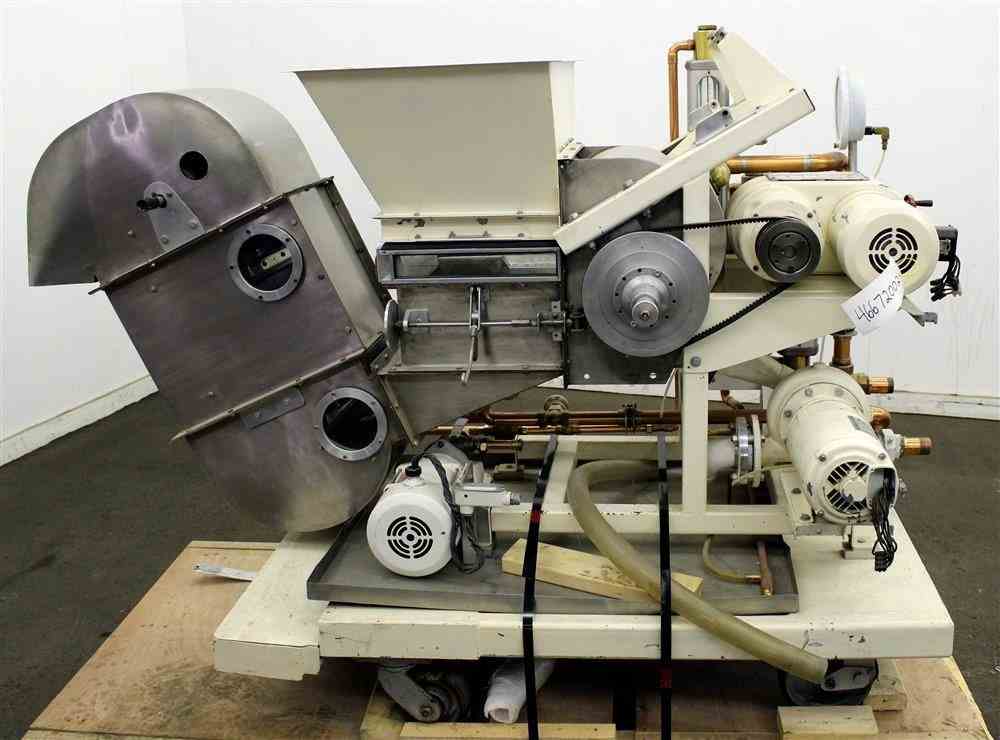

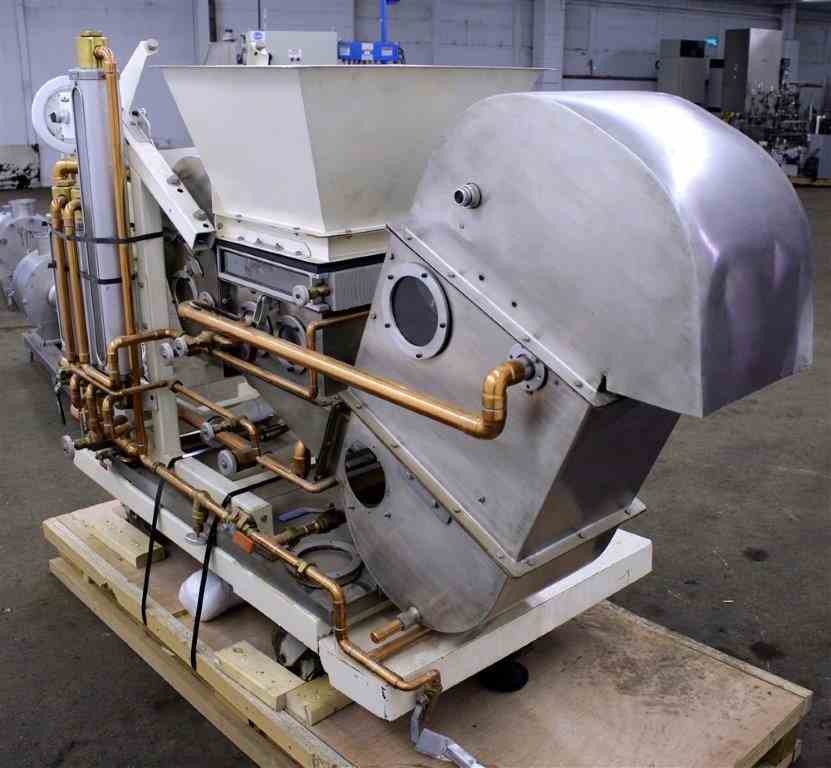

Used Liquid Classifier. Dual rotor breaker, 304 stainless steel, approximately 4" diameter (10) 3/8" thick, driven by a Reeves variable speed drive, 1 hp, ratio 144 to 1. (1) Wemco model FLM centrifugal pump, driven by a 3/4 hp, 3/60/230/460 volt, 1135 rpm. Bottom perforated tray for liquid solid separation. Solids removed by cleated discharge conveyor, 12" wide x 6"deep cleat(missing drive motor). Includes Eco centrifugal pump, driven by 1 hp, 3/60/230/460, 3450 motor. Mounted on a carbon steel frame with casters.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Unknown
Model
NA
Material
SS
Capacity
Unknown
