11800 Gal Evans & Sons  Carbon Steel Tank
Other Views - click image for larger view
11800 Gal Evans & Sons  Carbon Steel Tank

11800 gal evans & sons carbon steel tank

Stock # 20071
Sold
Capacity 11800 Gal

Overview

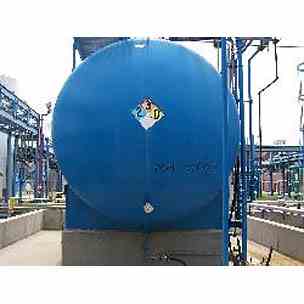

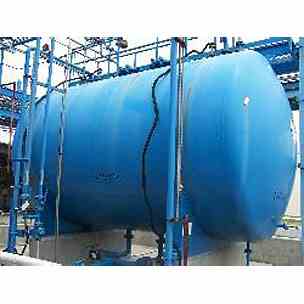

11,800 Gallon Evans & Sons Horizontal Carbon steel tank. 10’6” Diameter X 15’ Long straight side. Dished ends. Shell rated 14.9 PSI @ 150oF National Board #387. Mounted on saddles. Fittings top: (2) 20” manways (8) 3”, (2) 4”, End: (2) 1-1/ 2” , Bottom (2) 3” and (2) 1-1/ 2”

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Evans & Sons
Model
Material
Unknown
Capacity
11800 Gal
Subcategory

For additional information, visit the Resource Center
