Struthers Wells 3 MM/BTU Hot Oil Boilers

  • Stock# 9836
  • Capacity 3 MM BTU
Equipment Description

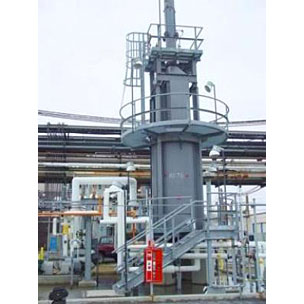

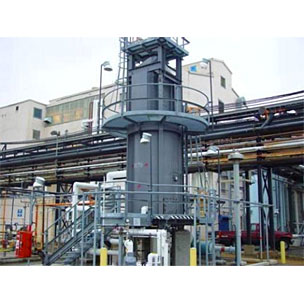

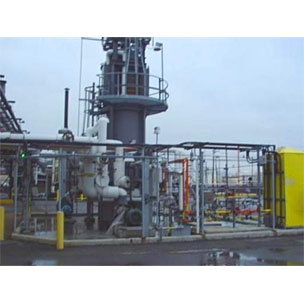

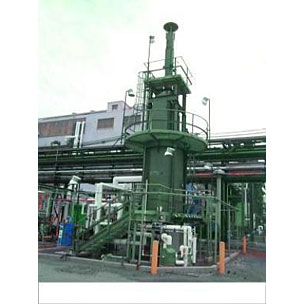

3.0 million BTU/Hr. Therminol heater system. MFD by Struthers Wells, model 5CV10.4(1), job # 98-28-30489, built 1998. System can be batch or continuously operated. Main system components: Direct fired heater, model 5CV-10-4. Heat stack. 8" inlet stack with Rain Cap. 2 x New York blowers #15 PLR class II. 3x VAW model 16 VC1B-24 inlet silencer. Fuel train LE-CSG-3W Gas, low NOx burner with electric ignition pilot assembly. High temp. mortar. Control panel. Natural gas pilot rated 4 Lbs/Hr flow with inlet pressure 10 psi and outlet pressure of 8 psi. Flow coefficient Cv 0.28. Combustion air blower with static pressure of 9.55 WC. Air tem. 95 deg. F, air flow rate 3457 Lbs/Hr. Direct fired heater type Vertical, Cylindrical forced draft. Heat absorption 3.0MM BTU/Hr.

  • Manufacturer Struthers Wells
