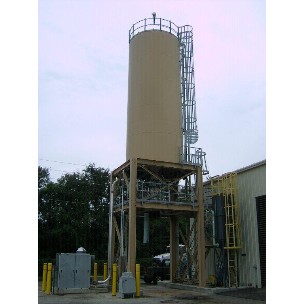

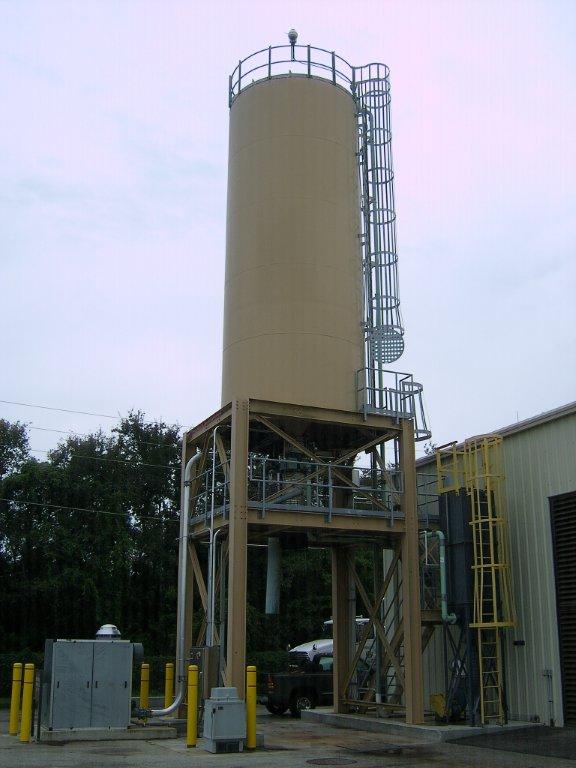

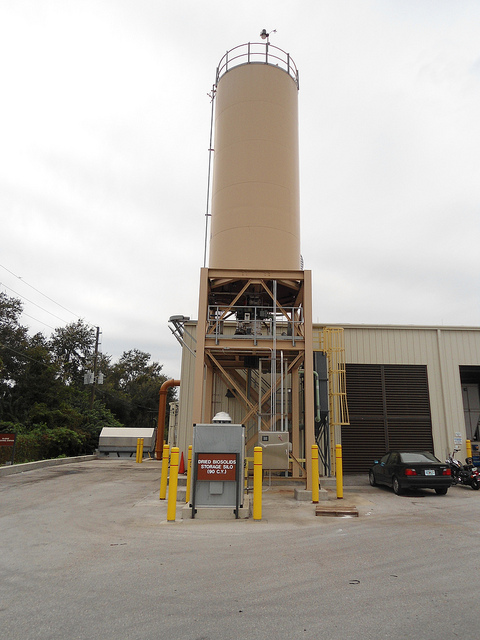

90 Cu Yd Carbon Steel Silo

Stock# 5414
Capacity 90 Cu Yd

Equipment Description

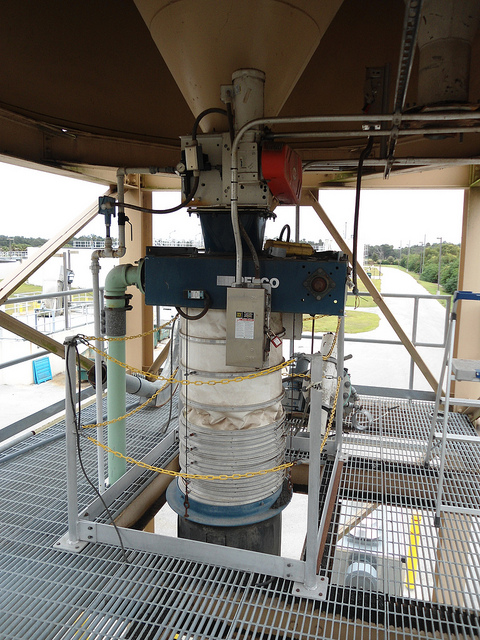

Used 90 Cu Yard CS Silo w/ Blower & Baghouse. The silo is setup to unload into a full size truck from the bottom of the silo through a rotary valve. Below the rotary valve is a chute that can be lowered into the bed of the truck and raised as the truck fills to minimize dust. The silo is also equipped with thermal probes and nitrogen injection for fire suppression. GMD Environmental Technologies Bagbouse Dust Collector, Model 16-5-6RA, rated 550 ACFM @ 125 deg F, +/- 20" W.C. made of 10 guage A36, steel 16 bag capacity. Includes 4" Fox Venturi Eductor, Series 300-SCE, Delta K4 Blower, GM-10S/15L-G5, Pebco Loading spout, DLS-22-10-OT-M. Roatry Valve w/ speed reducer, MD rotary airlock, nitrogen purge w/ temperature control. Complete O&M Manual w/ Electrical schematic. Built 1987.
