660 Gal Precision Stainless  Inc 316L Pressure Vessel
Other Views - click image for larger view
660 Gal Precision Stainless  Inc 316L Pressure Vessel

660 gal precision stainless inc 316l pressure vessel

Stock # 5368
Sold
Capacity 660 Gal

Overview

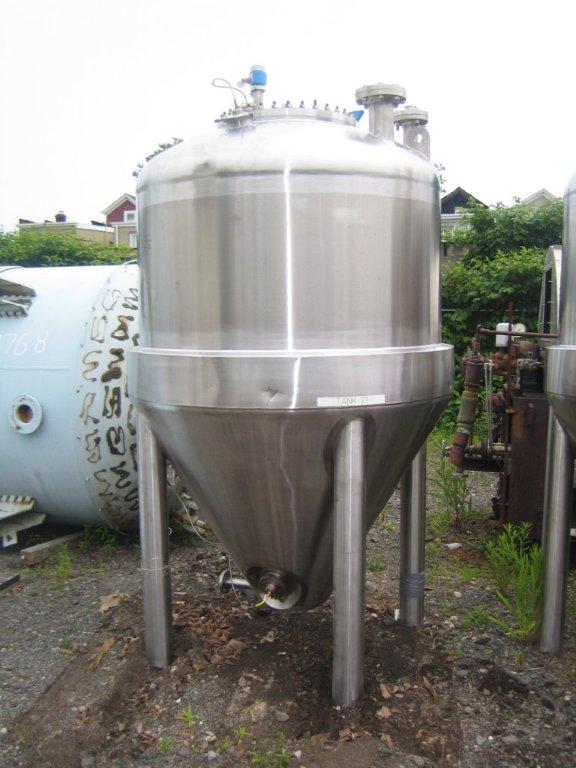

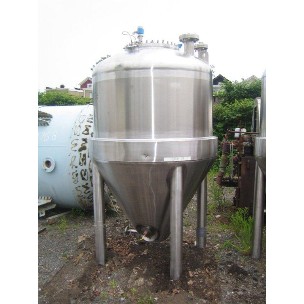

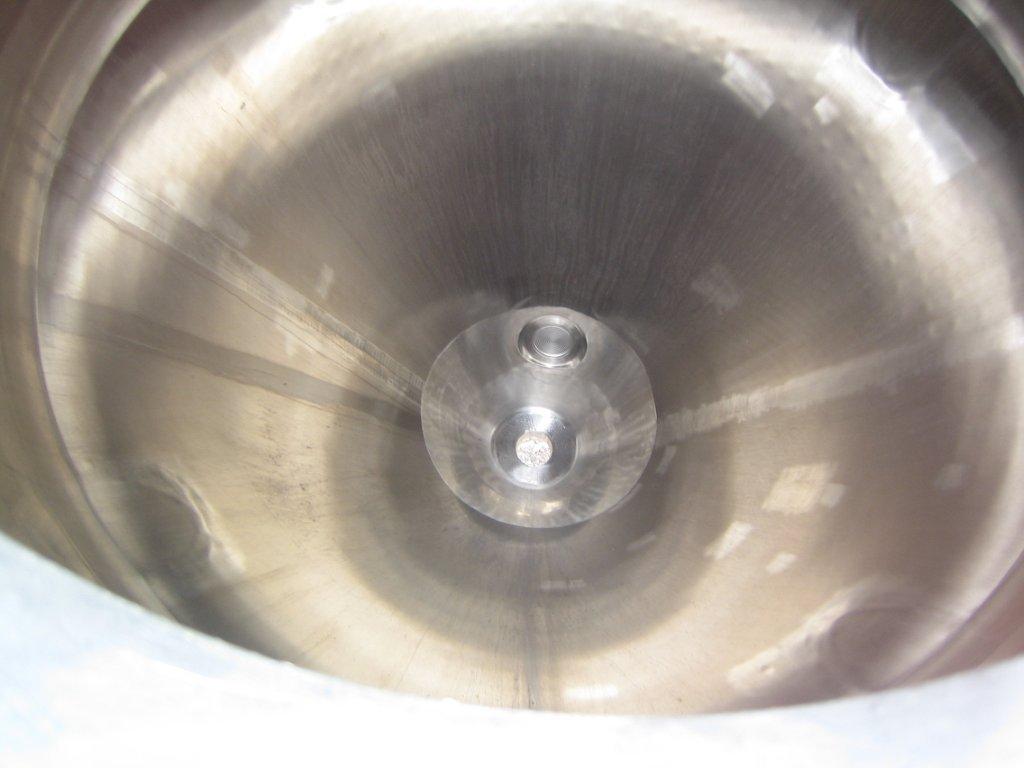

Used 2500 Liter (approx 660 gallon) 316L stainless steel vertical jacketed sanitary tank, 45 PSI internal @ 275 degree F, 304-SS Jacket rated 90 PSI @ 275 degree F (cone only). 4' 6" diameter x 3' straight side plus 4' cone. (OAH: 116") Top nozzles: 28" Bolted Center Port, 14" manway, 4", 2"; 3" CBO, plus 4" port on side bottom cone. Polished interior. SS Legs. Built by Precision Stainless, 2002. S/N: 220735-2, NB# 9970. Previous Use: Skin Cream.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Precision Stainless, Inc
Model
Material
316L
Capacity
660 Gal
Subcategory
