Vulcan Iron Works 1,900 Sq. Ft. Shell & Tube - Stainless Steel Heat Exchangers
- Stock# 4922
- Capacity 1900 Sq. Ft.
Equipment Description

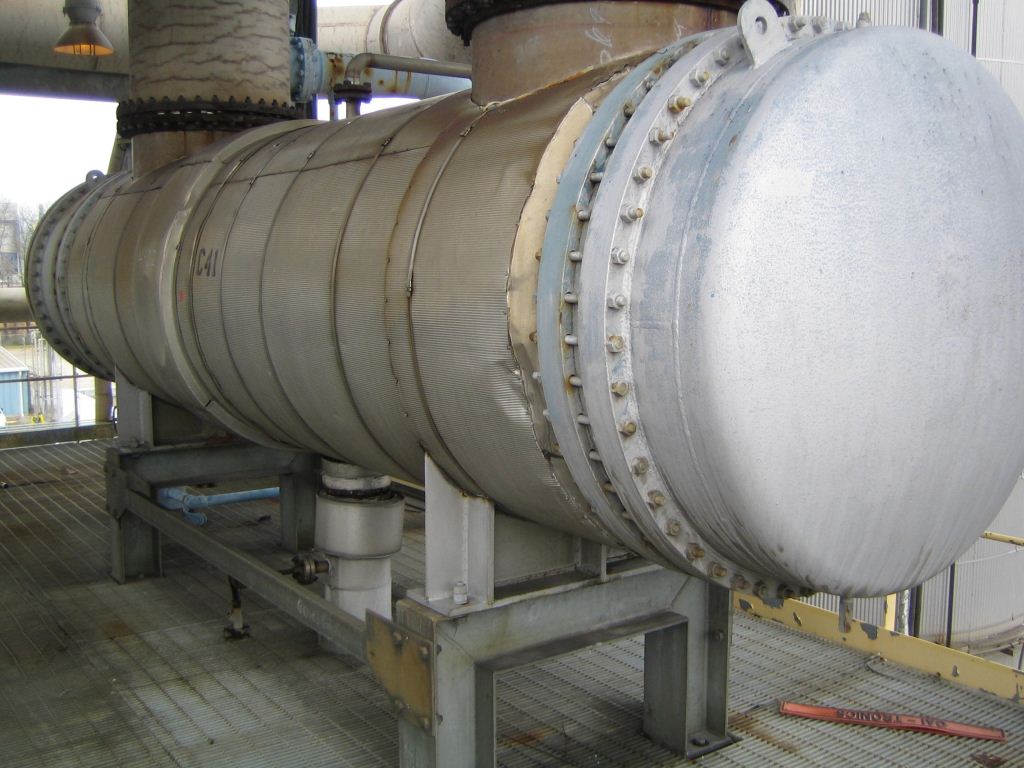

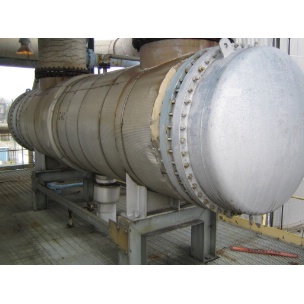

Used horizontal 1900 Sq Ft Shell & Tube Heat Exchanger. 304-SS Shell rated 25 PSI/FV @ 304 deg F. 304-SS Tubes rated 125 @ 160 deg F. 48.5" Shell x 17' L. (667) 3/4" OD Tubes x 15' L. Nozzles: Shell - (2) 32", 6"; Tubes - (2) 10". Divided Flow Shell, 2 Pass Tubes. Built by Vulcan Mfg, 1980. ASME Coded. Weight: 19,000 lbs. Previous Use: Ammonia Column Condenser.
- Manufacturer Vulcan Iron Works
