Titanium Evaporation / Crystallization System

Stock# 2300
Capacity 100 GPM

Equipment Description

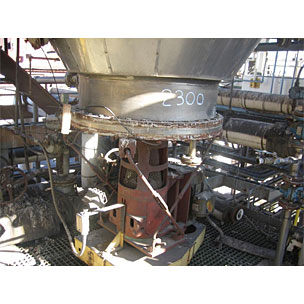

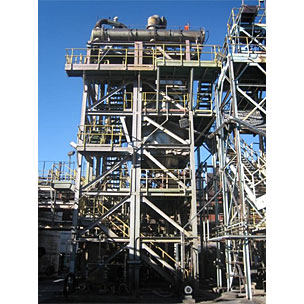

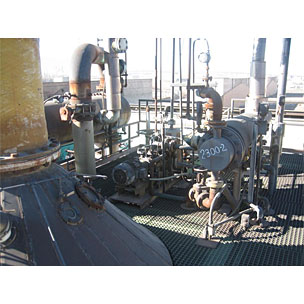

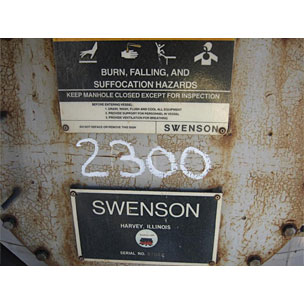

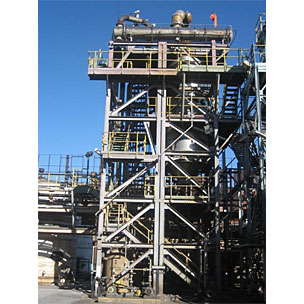

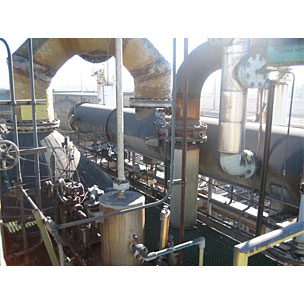

Used titanium evaporation / crystallization System, max flow rate 100 gallons per minute. Mfg. by Swenson / Astro Mettalurgical, single effect draft tube baffle type. Approx. 8' x 20 straight side with 4' cone top and 6' cone bottom. Rated FV @ 100 C. Unit has bottom drive with 15 HP Lightnin mixer with titanium grade 2 shaft and impeller. System includes: Titanium Plate Exchanger (Plant #30E-1 Crystallizer Heat Exchanger); Horizontal shell and tube Graham condensor, shell rated 20PSI/FV @ 250 C, tubes rated 75 PSI @ 250 C, Serial# 66714-1, NB # 1569, Built 1988. Nash Vacuum Pump System; Other Pumps- (3OP27 A/B, 3OP26A/B, 3OP15)
